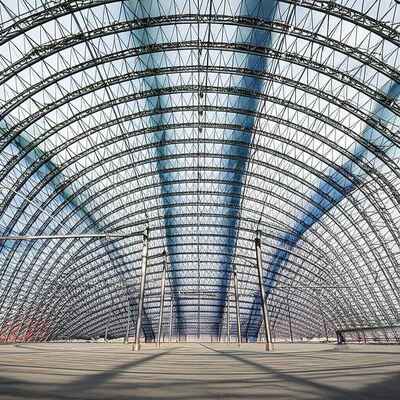

Premium Prefabricated Steel Homes, Heavy-Duty Large-Span Design (Span 50m–150m, for 5,000–49,000 People)
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1090 CE, ISO3834, ISO15614, AWS D1.1, ISO 9001/14001/45001 |
| Minimum Order Quantity | 10 tons |
| Price | USD/tonne (FOB Qingdao or any Chinese port of loading); final price subject to project drawings |
| Packaging Details | Bundled, crated, rack-packed or nude (per member type); shipped by container load or breakbulk vessel. |
| Delivery Time | 20–25 days after drawing confirmation & deposit; subject to project scope and quantity. |
| Payment Terms | T/T;30% or 50% deposit, balance before shipment to designated port. |
| Supply Ability | min. 5,000 tons/month (80,000 tons/year) |
Product Details
| Business Type | Manufacturer (Original Factory) | Customization | OEM/ODM; Drawings By Client Or Our In-house Team |
|---|---|---|---|
| Inspection | SGS/BV/TÜV/Intertek, Third-party Accepted. | Warranty | 12 Months From B/L Date; Covering Fabrication And Material Defects. |
| After-sales Service | On-site Erection Guidance & Technical Support | Steel Grade | Q235B/Q355B (GB/T 1591); S355JR (EN 10025); ASTM A36 / A572 Gr50 |
| Workshop Crane Capacity | Up To 100 Tons | Max. Single-piece Fabrication Weight | Up To 100 Tons |
| Max. Single-piece Fabrication Height | Up To 6 Meters （Assembly Height Per Client's Requirement & Design Drawings) | Max. Truss Segment Length | Up To 40 Meters （Assembly Length Per Client's Requirement & Design Drawings) |
| Highlight | 50M heavy steel structures,150M heavy steel structures,49000 people Premium Prefabricated Homes |
||
Product Description
Premium Prefabricated Steel Homes, Heavy-Duty Large-Span Design (Span 50m–150m, for 5,000–49,000 People)
Main Feature

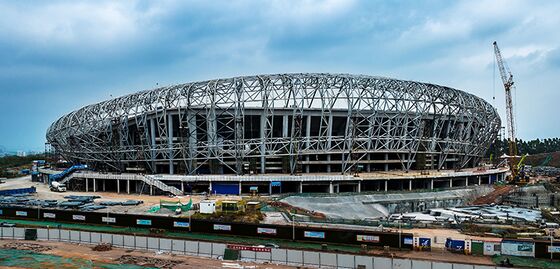

The stadium's steel structure system utilizes advanced large-span spatial frame technology, featuring excellent seismic performance and professional acoustic optimization design. This system is suitable for various sports events, cultural performances, achieving efficient utilization of a multi-functional venue.
Technical Specifications
Parameter | Specification | Standard |
Structural Span | 50-150 meters (Customizable) | GB 50017-2017 |
Audience Capacity | 5,000-49,000 people | JGJ 31-2003 |
Seismic Resistance Level | Degree 8 Fortification | GB 50011-2010 |
Reverberation Time | 1.5-2.1 seconds (Adjustable) | GB/T 50356-2005 |
Lighting Coefficient | ≥2.5% | GB 50033-2013 |
Wind Resistance Level | Typhoon Level 12 (35m/s) | GB 50009-2012 |
Roof Live Load | ≥0.5 kN/m² | GB 50009-2012 |
Fire Resistance Rating | F60-F120 | GB 50016-2014 |
Design Service Life | 50 years | GB 50068-2018 |
Advantages
The design of the large-span spatial frame achieves a column-free large space, providing the best viewing perspective for the event.
The advanced seismic design ensures the safety of venues in earthquake-prone areas.
Professional acoustic optimization meets the audio requirements of sports events and cultural performances.
Versatile adaptability, allowing quick transition to different usage scenarios.
Modular prefabricated components significantly shorten the construction period.
Intelligent management system enhances venue operation efficiency.
Applications
Comprehensive Sports Complexes
Basketball and Volleyball Arenas
Badminton and Table Tennis Halls
Aquatic Centers and Water Sports Facilities
Gymnasiums and Martial Arts Halls
Indoor track and Field Training Facilities
Multi-purpose Sports Halls
School Sports Facilities
Community Sports Centers
Professional Club Training Facilities
Competition and Event Venues
