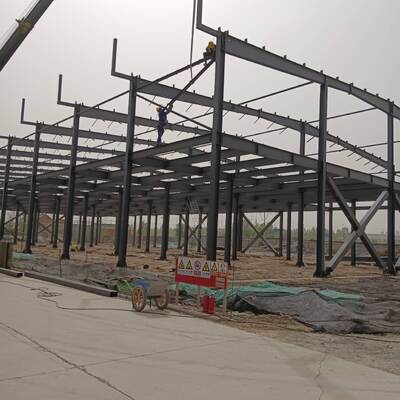

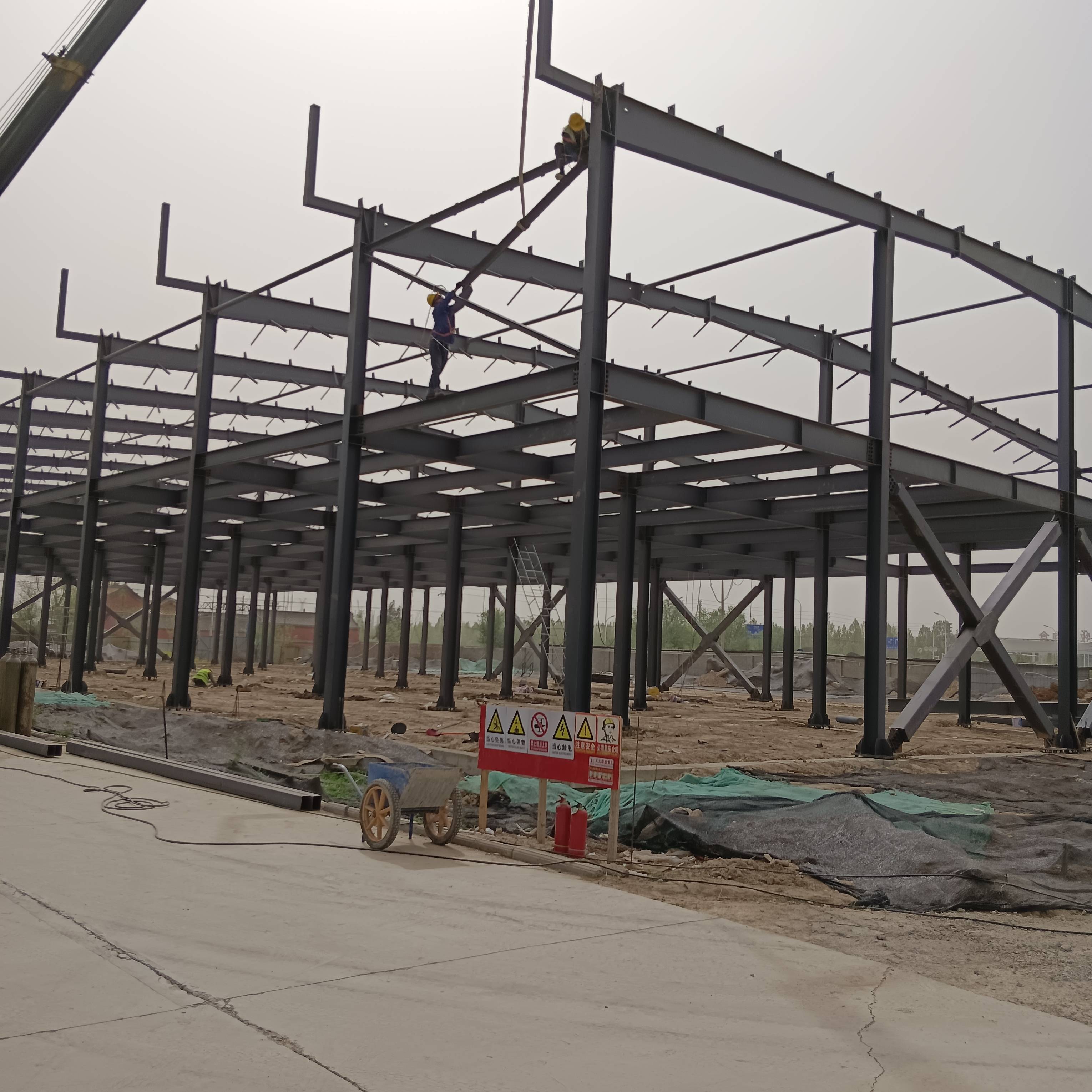

Logistics Customized Steel Structure Warehouse 50m 60m Prefabricated Warehouse Buildings
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1900、Three-Body |
| Model Number | Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc |
| Minimum Order Quantity | 10 tons |
| Price | 8000 yuan per ton |
| Packaging Details | Bulk carriers, containers |
| Delivery Time | After confirming the drawings, the shipment will be made within 20 days . |
| Payment Terms | Advance payment plus full payment for delivery |
| Supply Ability | Monthly supply capacity not less than 2000 tons . |
Product Details
| Product Name | Prefab Steel Structure | Seismic Resistance | Degree 8 Fortification |
|---|---|---|---|
| Wind Resistance Level | Typhoon Level 12 (35m/s) | Design Service Life | 50 Years |
| Feature | Anti Earthquake、Antirust、Anti Corrosion | Size | 15-80 Meters 、80-120 Meters 、50-1000M |
| Grade | Q235B Q355B | Standard | GB EN ASTM |
| Type | Light | Keyword | Steel Structure Warehouse Building Prefab Warehouse Steel Structure |
| Performance | Safety, Water-proof, Sound Insulated,hear-preservation | ||
| Highlight | logistics customized steel structure warehouse,customized steel structure warehouse 50m,60m prefabricated warehouse buildings |
||
Product Description
Rapid Construction Q355B Steel Structure Large Warehouse, Economical Design
prodnct deecrlption
Q355B high-strength steel fabricated large warehouse steel structure system, customized for modern logistics storage requirements. The portal frame structure provides up to 82 meters of column-free space, ideal for large rack systems and automated equipment installation. Engineered for diverse climate conditions with integrated drainage systems and moisture barriers for rainy regions, and high-reflectivity roof panels to reduce indoor temperatures in hot climates.
Technical Specifications
Parameter |
Specifications |
Standards |
Main Material |
Q355B high-strength steel (equivalent to ASTM A572 Gr.50, EN S355JR) |
GB/T 1591, ASTM A572, EN 10025 |
Span Range |
15-82 meters (standard), 82-125 meters (custom design) |
GB 50017, EN 1990, ASCE 7 |
Ground Load |
5-20 tons/m² (customizable based on storage requirements) |
GB 50009, EN 1991 |
Eave Height |
8-20 meters (adjustable), compatible with high-level shelving systems |
ISO 6781 |
Roof System |
0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel |
ASTM A792, EN 10169 |
Key Advantages
-
Constructed from Q355B high-strength steel, the structure delivers superior load-bearing capacity, perfectly suited for high-density racking systems. -
Rapid construction system completes 10,000m² warehouse construction within 6 months -
The modular expandable design allows for flexible scalability of warehouse capacity, adapting seamlessly to growing business demands. -
Climate-adaptive design with customized environmental control solutions for various regions -
Large-span column-free layout maximizes storage space, raising utilization efficiency by 30%.Applications
1.Logistics distribution centers and regional distribution warehouses
2.Cold chain logistics warehouses and temperature-controlled storage facilities
3.Industrial raw materials and finished product storage warehouses
4.Port container yards and cargo transfer stations
