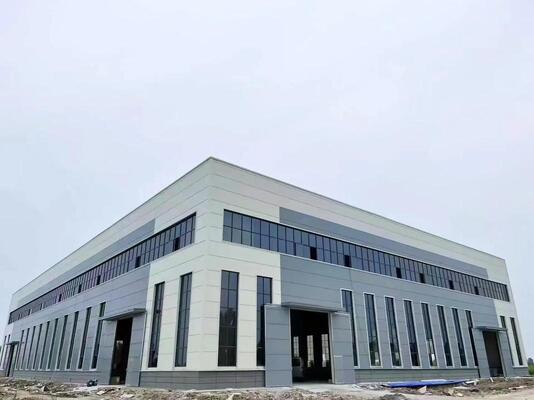

Rapid Construction Warehouse Steel Structure 15 - 81M Metal Warehouse Construction
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1900、Three-Body |
| Model Number | Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc |
| Minimum Order Quantity | 10 tons |
| Price | 8000 yuan per ton |
| Packaging Details | Bulk carriers, containers |
| Delivery Time | After confirming the drawings, the shipment will be made within 20 days . |
| Payment Terms | Advance payment plus full payment for delivery |
| Supply Ability | Monthly supply capacity not less than 2000 tons . |
Product Details
| Product Name | Prefab Steel Structure | Seismic Resistance | Degree 8 Fortification |
|---|---|---|---|
| Wind Resistance Level | Typhoon Level 12 (35m/s) | Design Service Life | 50 Years |
| Feature | Anti Earthquake、Antirust、Anti Corrosion | Size | 15-80 Meters 、80-120 Meters 、50-1000M |
| Grade | Q235B Q355B | Standard | GB EN ASTM |
| Type | Light | Keyword | Steel Structure Warehouse Building Prefab Warehouse Steel Structure |
| Performance | Safety, Water-proof, Sound Insulated,hear-preservation | ||
| Highlight | Rapid Construction Warehouse Steel Structure,Warehouse Steel Structure 15M,81M Metal Warehouse Construction |
||
Product Description

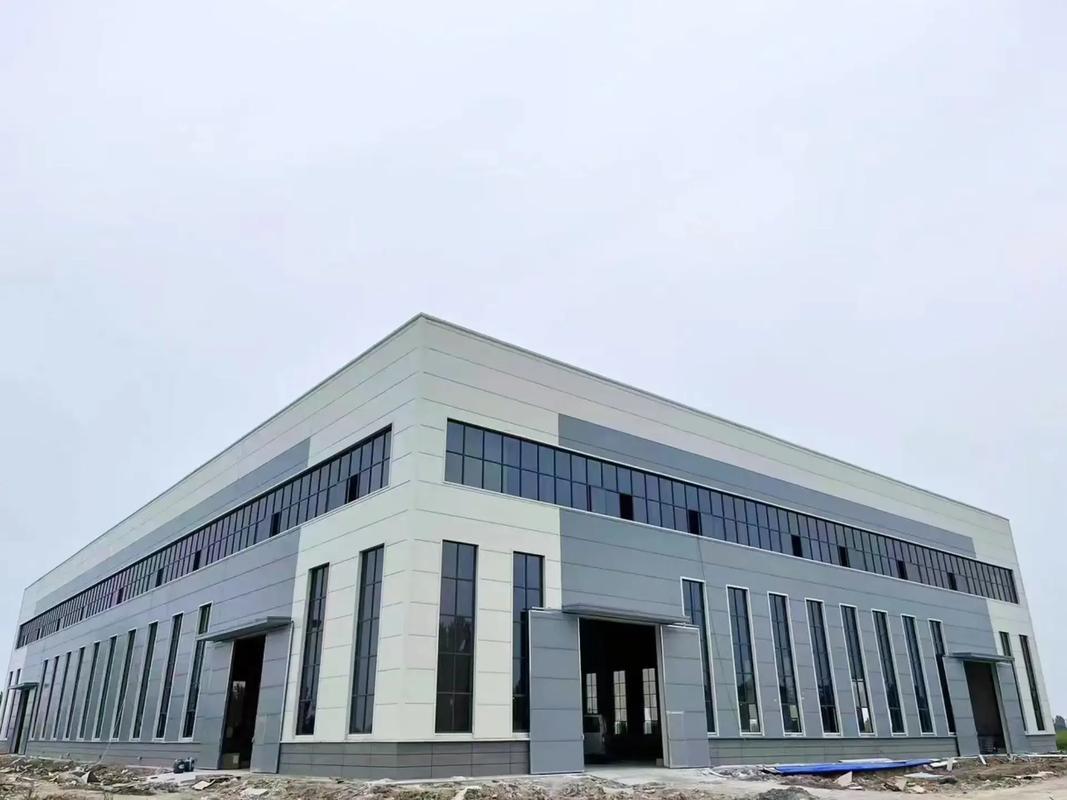

Q355B Steel Modular Large Warehouse, Rapid Construction
prodnct deecrlption
Large warehouse steel structure system manufactured from Q355B high-strength steel, specifically engineered for modern logistics storage requirements. The portal frame structure provides up to 82 meters of column-free space, ideal for large rack systems and automated equipment installation.Built to perform in diverse climates, it features integrated drainage and moisture barriers for rainy regions, plus high-reflectivity roof panels that lower indoor heat in hot areas efficiently.
Technical Specifications
|
Main Material |
Q355B high-strength steel (equivalent to ASTM A572 Gr.50, EN S355JR) |
|
Span Range |
15-81 meters (standard), 81-126 meters (custom design) |
|
Eave Height |
8-20 meters (adjustable), compatible with high-level shelving systems |
|
Roof System |
0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel |
|
Ground Load |
5-20 tons/m² (customizable based on storage requirements) |
|
Design Life |
Over 25 years |
Key Advantages
-
Q355B high-strength steel provides exceptional load-bearing capacity for high-density rack systems
-
Modular expansion design enables flexible warehouse capacity increases as business needs grow
-
Rapid construction system completes 10,000m² warehouse construction within 6 months
-
Climate-adaptive design with customized environmental control solutions for various regions
-
Large-span column-free design maximizes storage space, increasing utilization by 30%
-
Can be specifically designed according to different regional climate conditions
-
Materials are recyclable, conforms to green building concept
Applications
-
Logistics distribution centers and regional distribution warehouses
-
Cold chain logistics warehouses and temperature-controlled storage facilities
-
Industrial raw materials and finished product storage warehouses
-
Port container yards and cargo transfer stations
-
Manufacturing production workshops, assembly workshops
