EN10025 Warehouse Steel Structure 100mm - 200mm Multi Storey Modular Buildings
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1900、Three-Body |
| Model Number | Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc |
| Minimum Order Quantity | 10 tons |
| Price | 8000 yuan per ton |
| Packaging Details | Bulk carriers, containers |
| Delivery Time | After confirming the drawings, the shipment will be made within 20 days . |
| Payment Terms | Advance payment plus full payment for delivery |
| Supply Ability | Monthly supply capacity not less than 2000 tons . |
Product Details
| Product Name | Prefab Steel Structure | Seismic Resistance | Degree 8 Fortification |
|---|---|---|---|
| Wind Resistance Level | Typhoon Level 12 (35m/s) | Design Service Life | 50 Years |
| Feature | Anti Earthquake、Antirust、Anti Corrosion | Size | 15-80 Meters 、80-120 Meters 、50-1000M |
| Grade | Q235B Q355B | Standard | GB EN ASTM |
| Type | Light | Keyword | Steel Structure Warehouse Building Prefab Warehouse Steel Structure |
| Performance | Safety, Water-proof, Sound Insulated,hear-preservation | ||
| Highlight | EN10025 Warehouse Steel Structure,Warehouse Steel Structure 100mm,200mm Multi Storey Modular Buildings |
||
Product Description
High-Efficiency Q355B Steel Structure Large Warehouse, Budget-Friendly
prodnct deecrlption

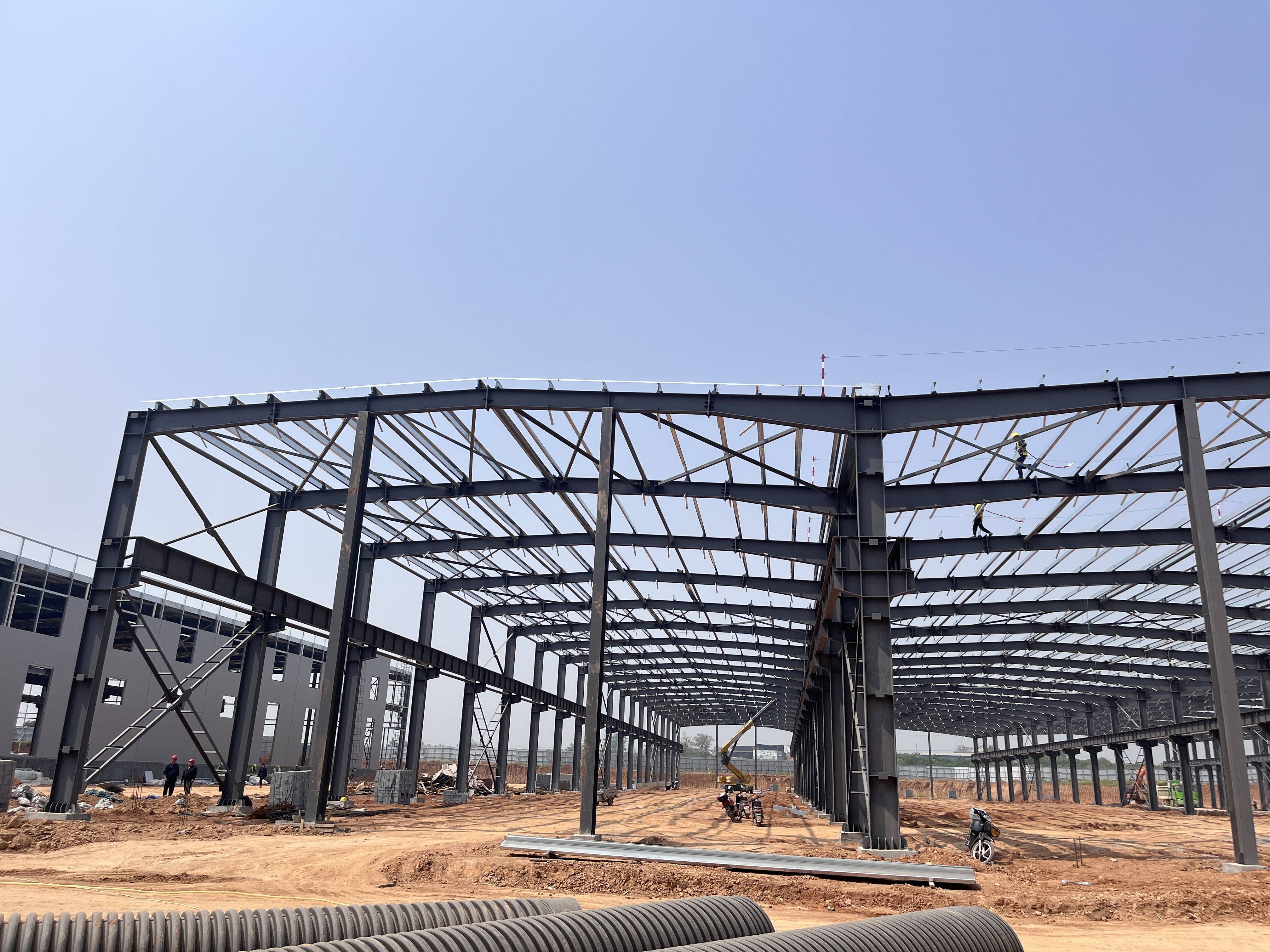

Crafted from Q355B high-strength steel, this steel structure system for large warehouses is tailor-made for modern logistics storage needs. Boasting a portal frame structure, it offers a column-free space of up to 82 meters—ideal for large racking and automated equipment setup. Built to adapt to various climates, it features integrated drainage and moisture barriers for rainy regions, plus high-reflectivity roof panels that reduce indoor heat in hot areas.
Technical Specifications
Parameter |
Specifications |
Standards |
Main Material |
Q355B high-strength steel (equivalent to ASTM A572 Gr.50, EN S355JR) |
GB/T 1591, ASTM A572, EN 10025 |
Roof System |
0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel |
ASTM A792, EN 10169 |
Ground Load |
5-21 tons/m² (customizable based on storage requirements) |
GB 50009, EN 1991 |
Span Range |
15-82 meters (standard), 82-125 meters (custom design) |
GB 50017, EN 1990, ASCE 7 |
Eave Height |
8-20 meters (adjustable), compatible with high-level shelving systems |
ISO 6781 |
Roof System |
0.6mm aluminum zinc coated color steel plate, 100-200mm rock wool sandwich panel |
ASTM A792, EN 10169 |
advantages
1.Q355B high-strength steel, excellent load-bearing capacity for high-density racking.
2.Rapid-construction system: 10,000㎡ warehouse completed in 6 months.
3.Modular expandable design, flexible capacity increase for growing business demands.
4.Large-span column-free design, 30% higher storage space utilization.
Applications
1.Logistics/regional distribution warehouses
2.Industrial raw material finished product storage
3.Cold chain temperature-controlled storage warehouses
4.Port container yards cargo transshipment stations
