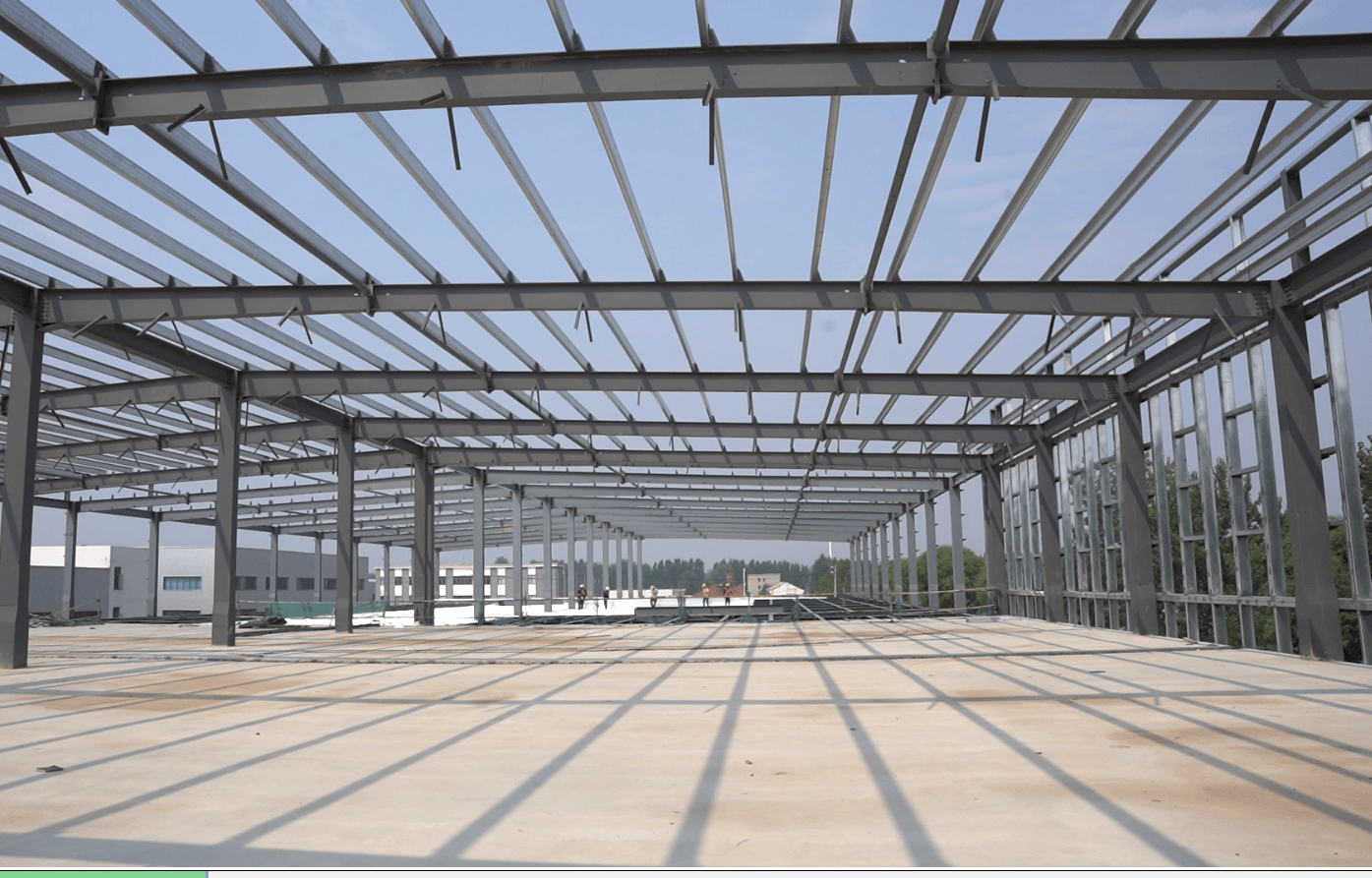

GB 50068 Roof Steel Structure 50 Meters - 150 Meters Metal Roof Trusses
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1900、Three-Body |
| Model Number | Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc |
| Minimum Order Quantity | 10 tons |
| Price | 8000 yuan per ton |
| Packaging Details | Bulk carriers, containers |
| Delivery Time | After confirming the drawings, the shipment will be made within 20 days . |
| Payment Terms | Advance payment plus full payment for delivery |
| Supply Ability | Monthly supply capacity not less than 2000 tons . |
Product Details
| Product Name | Prefab Steel Structure | Seismic Resistance | Degree 8 Fortification |
|---|---|---|---|
| Wind Resistance Level | Typhoon Level 12 (35m/s) | Design Service Life | 50 Years |
| Feature | Anti Earthquake、Antirust、Anti Corrosion | Size | 15-80 Meters 、80-120 Meters 、50-1000M |
| Grade | Q235B Q355B | Standard | GB EN ASTM |
| Type | Light | Keyword | Steel Structure Warehouse Building Prefab Warehouse Steel Structure |
| Performance | Safety, Water-proof, Sound Insulated,hear-preservation | ||
| Highlight | GB 50068 Roof Steel Structure,Roof Steel Structure 50 meters,150 meters metal roof trusses |
||
Product Description
Q355B High-Strength Steel Roof for Airport High-Speed Rail Station
prodnct deecrlption
Q355B high-strength steel space grid roof structure – engineered for large-span airport and modern transportation hubs .The structure achieves maximum spans up to 150 meters, creating expansive column-free spaces. Streamlined aerodynamic design reduces wind load impact by 30%. Intelligent drainage systems effectively handle heavy rainfall conditions in Southeast Asia, while natural lighting design reduces energy consumption by 42%. BIM technology ensures precise installation of complex structural nodes throughout the construction process.
Technical Specifications
Parameter Category |
Detailed Specifications |
International Standard |
Main Material |
Q355B high-strength steel |
GB/T 1591, ASTM A913, EN 10025 |
Structural Form |
Space grid structure, beam string structure, cable membrane structure |
GB 50017, EN 1993, ASCE 19 |
Span Range |
50-150 meters (standard design), 150-300 meters (special design) |
GB 50009, EN 1991, ASCE 7 |
Roof Material |
Aluminum magnesium manganese alloy sheet, ETFE film material, photovoltaic integrated sheet |
ASTM B209, EN 485, ISO 9227 |
Design Life |
≥ 52 years (important public building standards) |
GB 50068, ISO 13822 |
Key Advantages
-
Q355B ultra-high-strength steel enables over 150-meter large-span column-free spaces
-
Streamlined aerodynamic design reduces wind load by 30%, enhancing structural safety
-
Natural lighting design reduces energy consumption by 42%, meeting green building standards
-
BIM technology ensures precise implementation throughout complex project execution
Applications
-
International airport terminals and waiting halls
-
High-speed rail stations and rail transit hubs
-
Urban rail transit stations and underground spaces
-
Long-distance bus stations and transportation transfer centers
