AQ355B S355JR Warehouse Steel Structure Modular Expansion Pre Built Metal Buildings
| Place of Origin | China |
|---|---|
| Brand Name | Shandong Xinghua Steel Structure |
| Certification | EN1900、Three-Body |
| Model Number | Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc |
| Minimum Order Quantity | 10 tons |
| Price | 8000 yuan per ton |
| Packaging Details | Bulk carriers, containers |
| Delivery Time | After confirming the drawings, the shipment will be made within 20 days . |
| Payment Terms | Advance payment plus full payment for delivery |
| Supply Ability | Monthly supply capacity not less than 2000 tons . |
Product Details
| Product Name | Prefab Steel Structure | Seismic Resistance | Degree 8 Fortification |
|---|---|---|---|
| Wind Resistance Level | Typhoon Level 12 (35m/s) | Design Service Life | 50 Years |
| Feature | Anti Earthquake、Antirust、Anti Corrosion | Size | 15-80 Meters 、80-120 Meters 、50-1000M |
| Grade | Q235B Q355B | Standard | GB EN ASTM |
| Type | Light | Keyword | Steel Structure Warehouse Building Prefab Warehouse Steel Structure |
| Performance | Safety, Water-proof, Sound Insulated,hear-preservation | ||
| Highlight | AQ355B Warehouse Steel Structure,S355JR Warehouse Steel Structure,Modular Expansion pre built metal buildings |
||
Product Description
AQ355B Large Warehouse Steel Structure Fast Build, Economical, Modular Expansion
prodnct deecrlption

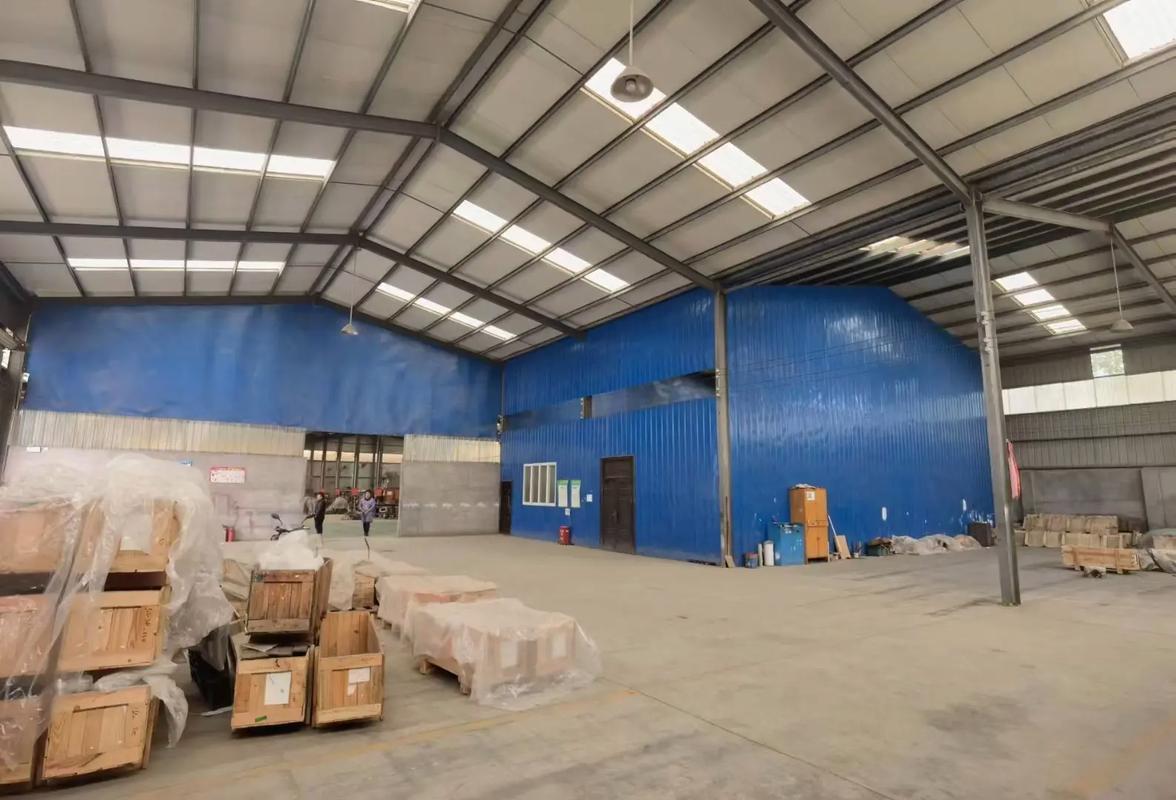

This large warehouse steel structure system is fabricated from high-strength Q355B steel, custom-designed for modern logistics and storage demands. Its portal frame structure delivers a maximum 80-meter column-free span, ideal for installing large rack systems and automated equipment. Tailored for Southeast Asia’s rainy climates with efficient drainage and moisture-proofing systems, and for the Middle East’s high-temperature environments with high-reflectivity roof panels to lower indoor temperatures. The modular design enables easy future expansion, supporting gradual warehouse capacity increases as business grows.
Technical Specifications
Parameter Category |
Detailed Specifications |
International Standard |
Main Material |
Q355B high-strength steel (corresponding to American standard A572 Gr.50, European standard S355JR) |
GB/T 1591, ASTM A572, EN 10025 |
Span Range |
15-80 meters (standard design), 80-120 meters (special design) |
GB 50017, EN 1990, ASCE 7 |
Eave Height |
8-20 meters (adjustable), meeting the needs of high-level shelves |
ISO 6781 |
Ground Load |
5-20 tons/m² (adjusted according to the type of stored goods) |
GB 50009, EN 1991 |
Key Advantages
· Q355B high-strength steel has excellent bearing capacity, supporting high-density rack systems
· Large-span column-free design maximizes storage space, space utilization increased by 30%
· Modular expansion design, allowing flexible increase of warehouse capacity according to business needs
· Rapid construction system, completing 10,000m² warehouse construction within 6 months
· Adapts to different climate conditions, providing customized environmental control solutions
Applications
· Logistics distribution centers and regional distribution warehouses
· E-commerce storage and order processing centers
· Cold chain logistics warehouses and constant temperature storage facilities
· Industrial raw materials and finished product storage warehouses
· Port container yards and cargo transfer stations
